Order-in
Supplied & installed by iConusCESS-418K-S
C&I storage · 418 kWh · Liquid-cooled outdoor cabinet
Price on request
Quantity
CESS-418K-S · Price on request
C&I storage · Hanchu ESS
418kWh

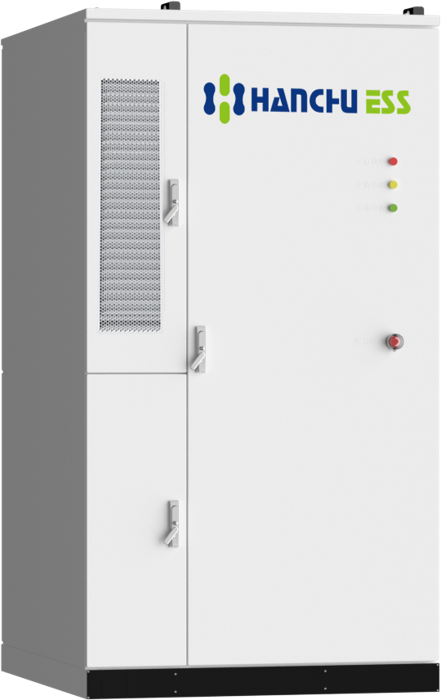

A liquid-cooled outdoor storage cabinet for factories, commercial buildings and microgrids. Cabinets connect in parallel as the project grows.
Liquid · Cooling1,331 V · Rated system voltage157 A · Charge / dischargeIP54 · Outdoor cabinet
LiquidCooling
1,331 VRated system voltage
157 ACharge / discharge
IP54Outdoor cabinet
Features
Why this c&i storage.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.
Liquid coolingPrecise thermal control extends the life of every cell.
High integrationModular design, parallel on the DC side across cabinets.
Cluster-level safetyElectrical and fire isolation between cabinets, active fire fighting.
Peak shavingCharges when power is cheap and discharges at peak times.
Microgrid readyWorks with solar, EV chargers and diesel generators.
Small footprint1.69 m² per cabinet.
Where it fits
Built for business.
Our engineers model your load profile and tariff before recommending a size.
Request a site studyPeak shavingCharge when power is cheap, discharge at peak times to cut demand charges.
Backup for critical loadsKeep cold rooms, servers and production lines running through outages.
Solar + generator hybridStore solar and cut diesel run-hours on sites with weak or no grid.
Grows with youAdd cabinets or modules as demand increases.
Specifications
The details.
- Rated capacity
- 418 kWh
- Rated system voltage
- 1,331.2 V
- Voltage range
- 1,164.8–1,497.6 V
- Battery type
- LFP (LiFePO4)
- Configuration
- 1P × 52S × 8S
- Max charge / discharge
- 157 A
- Cooling
- Liquid cooling
- Protection
- IP54
- Operating temperature
- −30 to +55 °C
- Altitude
- 3,000 m (derating above 2,000 m)
- BMS communication
- Ethernet · RS485 · CAN
- Dimensions (W×D×H)
- 1,250 × 1,350 × 2,335 mm
- Weight
- 3,400 kg
- Warranty
- Ask us
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
