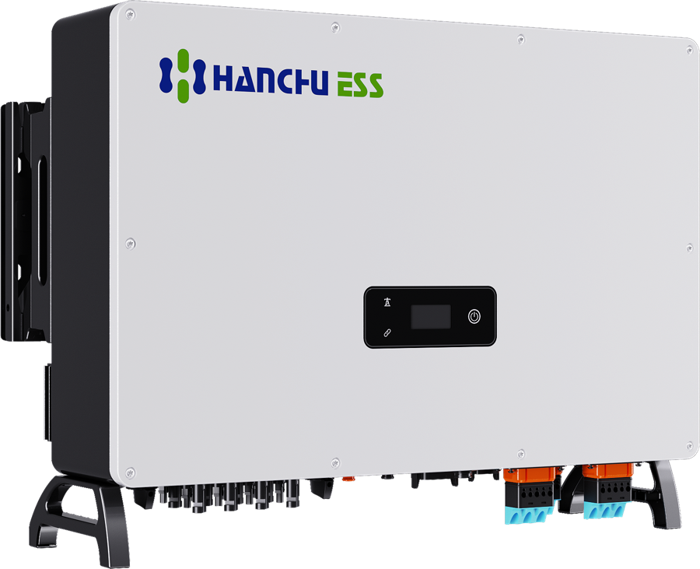

Supplied & installed by iConusCESS-HY-25K – 50K
C&I hybrid inverter · 25–50 kW · Three phase · 4 MPPTs
Price on request
Choose a model · CESS-HY-25K
Quantity
CESS-HY-25K – 50K · Price on request
C&I hybrid inverter · Hanchu ESS
25–50kW
A commercial three-phase hybrid inverter that scales from kilowatts to megawatts in parallel, for shops, offices, clinics and factories.
98.8% · Max efficiency4 MPPT · 30 A per tracker<20 ms · UPS switch timeIP65 · Outdoor rated
98.8%Max efficiency
4 MPPT30 A per tracker
<20 msUPS switch time
IP65Outdoor rated
Features
Why this c&i hybrid inverter.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.
100% unbalanced loadEach phase carries its own load.
Overload headroom110% AC overload, 120% backup overload for 60 s.
Parallel to MW scaleCombine units as the business grows.
Built-in EMSIntelligent energy management, OLED display and app.
100 A battery currentFast charge and discharge.
IP65Advanced heat dissipation for long life.
How it connects
One box runs
the whole system.
Solar feeds your home first. Extra energy charges the battery, and when the grid drops the inverter switches to backup on its own.
Figures from the datasheet. Your engineer confirms sizing at the site survey.
Specifications
The details.
- Models
- 25K · 30K · 36K · 40K · 50K
- Max PV input power
- 37.5–75 kW
- Max DC input voltage
- 1,000 V
- MPPT range
- 200–850 V
- MPP trackers
- 4 (2 inputs each)
- Battery voltage range
- 135–750 V
- Charge / discharge current
- 100 A
- Rated output
- 25–50 kW
- Backup peak
- 30–60 kVA, 60 s
- UPS switch time
- < 20 ms
- Max efficiency
- 98.8% (Euro 98.3%)
- Dimensions (W×H×D)
- 800 × 620 × 300 mm
- Weight
- 76 kg
- Protection
- IP65
- Operating temperature
- −30 to +60 °C
- Warranty
- 10 years
