Supplied & installed by iConusCESS-HV-9.4K
C&I battery · 28.2–112.8 kWh · High voltage
Price on requestper module
Battery modules
Total storage: 56.40 kWh
CESS-HV-9.4K · Price on request
C&I battery · Hanchu ESS
28.2–112.8kWh

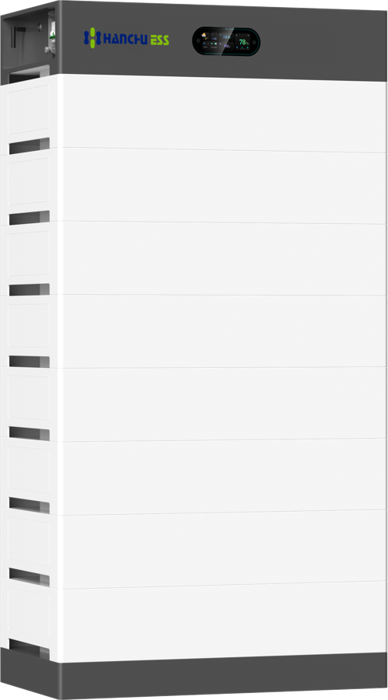

A commercial high-voltage battery built from 9.4 kWh blade-LFP modules, with a touch display and explosion-proof valves.
Blade LFP · CTP technology100 A · Charge / discharge>6,000 · CyclesIP65 · Dust & water protected
Blade LFPCTP technology
100 ACharge / discharge
>6,000Cycles
IP65Dust & water protected
Features
Why this c&i battery.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.
Hanchu ESSCESS-HV-9.4KCommercial installation
Blade LFP + CTPCompact modules with more usable energy.
Aerosol fire protectionPlus explosion-proof valves.
Touch displayEasier set-up and operation on site.
Remote energy management24/7 monitoring with remote diagnosis.
Build your stack
How much backup
do you need?
What do you want to keep running?
Total storage
56.40 kWh
56.40 kWh
Usable at 95% depth
– kWh
– kWh
Estimated backup
≈ – hours
≈ – hours
At a steady 1.5 kW load. Real results vary.
Specifications
The details.
- Module energy
- 9.4 kWh
- System
- 3–12 modules · 28.2–112.8 kWh
- System voltage
- 153.6–614.4 V
- Cell type
- Blade LFP
- Charge / discharge
- 100 A
- Depth of discharge
- 95%
- Cycle life
- > 6,000 at 25 °C
- Module weight
- 72 kg
- Stack size (W×D)
- 780 × 432 mm
- Stack height
- 720 mm (3) to 2,160 mm (12)
- Protection
- IP65
- Certifications
- IEC 62619 · IEC 62477 · CE · UN38.3
- Warranty
- 10 years
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
