In stock
Supplied & installed by iConusHOME-ESS-HV-2.7K
Home battery · 8.1–32.4 kWh · High voltage
Price on requestper module
Battery modules
Total storage: 10.80 kWh
HOME-ESS-HV-2.7K · Price on request
Home battery · Hanchu ESS
8.1–32.4kWh
A slim, light high-voltage module that one person can install. Stack three to twelve to match your home.
25.4 kg · Per module50 A · Max charge / discharge95% · Depth of dischargeIP65 · Dust & water protected
25.4 kgPer module
50 AMax charge / discharge
95%Depth of discharge
IP65Dust & water protected
Features
Why this home battery.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.

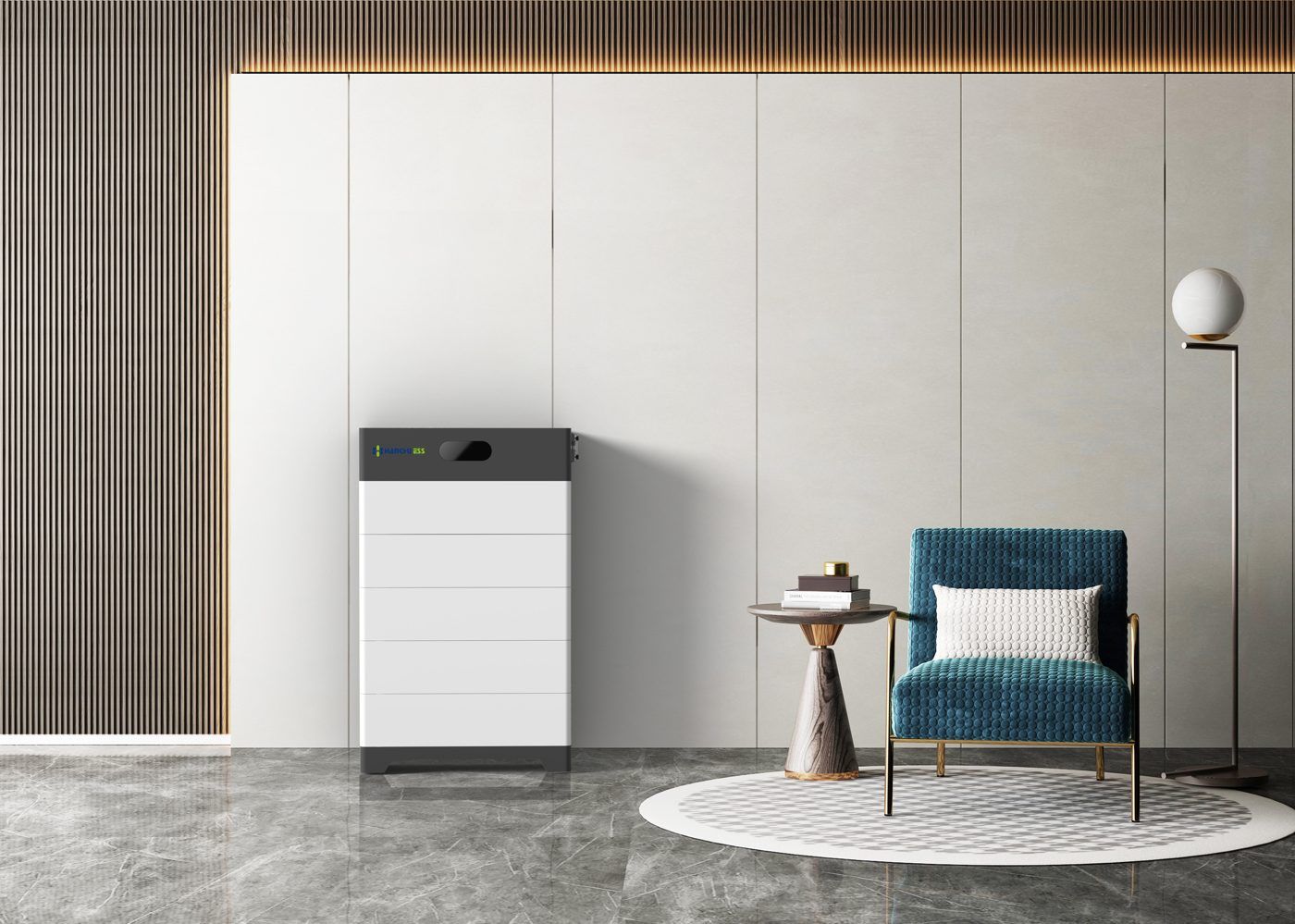

Hanchu ESSHOME-ESS-HV-2.7KInstalled at home
One-person installLight, thin modules for quick installation.
Aerosol fire protectionBuilt into every module.
Better heat dissipationImproved structure for a longer life.
24/7 monitoringRemote diagnosis and upgrades.
Build your stack
How much backup
do you need?
What do you want to keep running?
Total storage
10.80 kWh
10.80 kWh
Usable at 95% depth
– kWh
– kWh
Estimated backup
≈ – hours
≈ – hours
At a steady 1.5 kW load. Real results vary.
Specifications
The details.
- Module energy
- 2.7 kWh
- System
- 3–12 modules · 8.1–32.4 kWh
- System voltage
- 153.6–614.4 V
- Cell type
- LFP (LiFePO4)
- Charge / discharge
- 25 A nominal · 50 A max
- Depth of discharge
- 95%
- Cycle life
- > 6,000 at 25 °C
- Module weight
- 25.4 kg
- Stack size (W×D)
- 650 × 225 mm
- Stack height
- 728 mm (3) to 2,186 mm (12)
- Protection
- IP65
- Certifications
- IEC 62619 · IEC 62477 · CE · UN38.3
- Warranty
- 10 years
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
