Supplied & installed by iConusHOME-ESS-HV-5.12K
Home battery · 15.36–61.44 kWh · High voltage
Price on requestper module
Battery modules
Total storage: 20.48 kWh
HOME-ESS-HV-5.12K · Price on request
Home battery · Hanchu ESS
15.36–61.44kWh

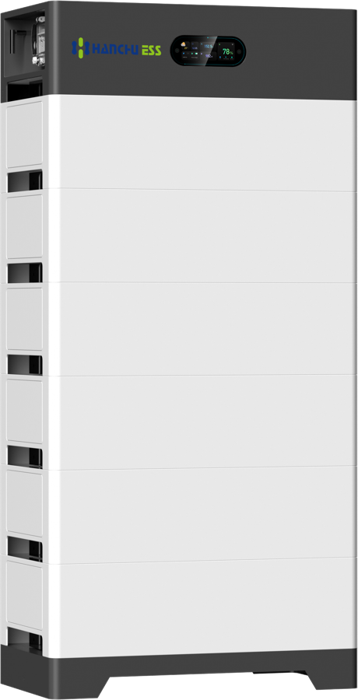

A stackable high-voltage battery for three-phase homes. Clip three to twelve modules together with no cables between them.
5.12 kWh · Per module100 A · Max charge / discharge95% · Depth of dischargeIP65 · Dust & water protected
5.12 kWhPer module
100 AMax charge / discharge
95%Depth of discharge
IP65Dust & water protected
Features
Why this home battery.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.

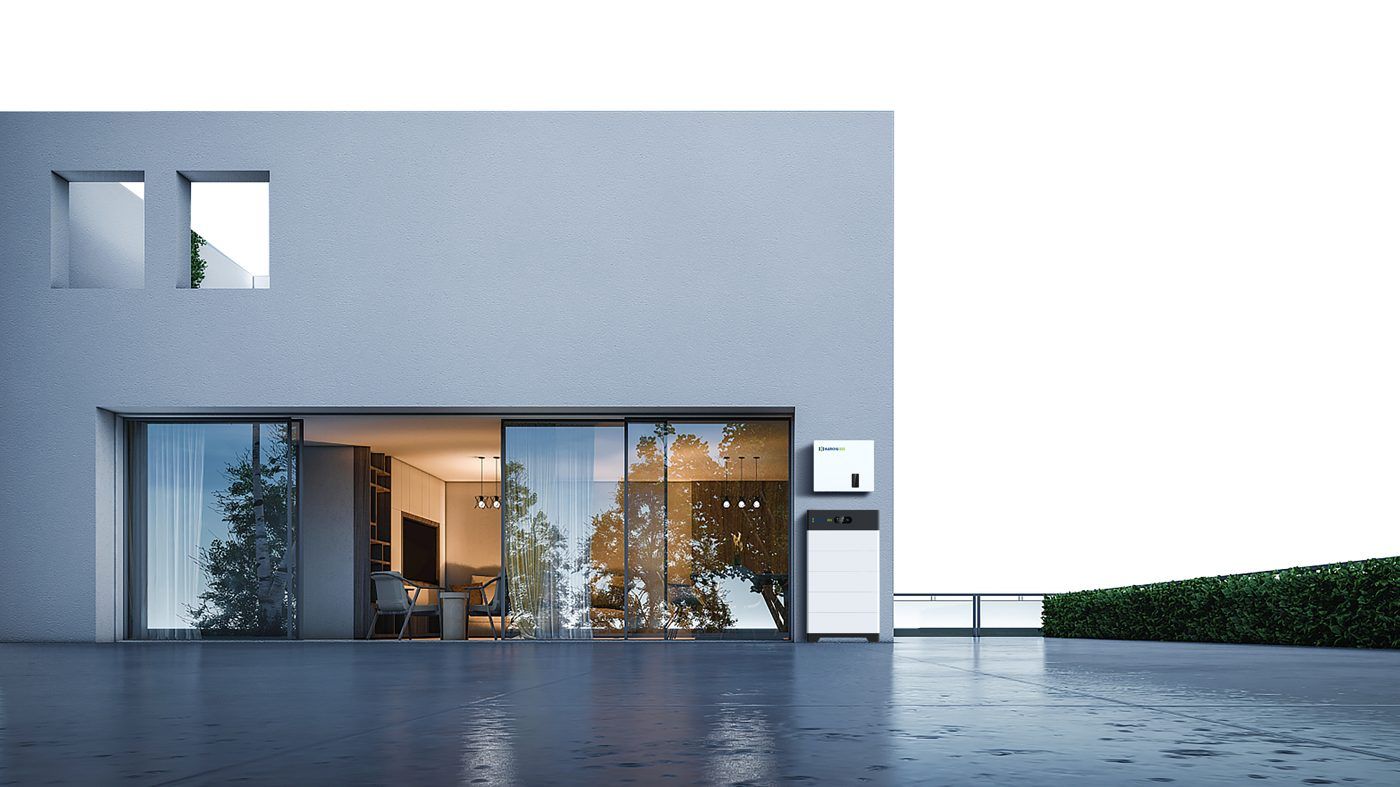

Hanchu ESSHOME-ESS-HV-5.12KInstalled in a living room
No-cable stackingModular design with no connections between modules.
Aerosol fire protectionBuilt into every module.
Long cycle lifeOver 6,000 cycles at 25 °C.
24/7 monitoringRemote diagnosis and upgrades.
Build your stack
How much backup
do you need?
What do you want to keep running?
Total storage
20.48 kWh
20.48 kWh
Usable at 95% depth
– kWh
– kWh
Estimated backup
≈ – hours
≈ – hours
At a steady 1.5 kW load. Real results vary.
Specifications
The details.
- Module energy
- 5.12 kWh
- System
- 3–12 modules · 15.36–61.44 kWh
- System voltage
- 153.6–614.4 V
- Cell type
- LFP (LiFePO4)
- Charge / discharge
- 50 A nominal · 100 A max
- Depth of discharge
- 95%
- Cycle life
- > 6,000 at 25 °C
- Module weight
- 43 kg
- Stack size (W×D)
- 650 × 355 mm
- Stack height
- 812 mm (3) to 2,459 mm (12)
- Protection
- IP65
- Communication
- CAN · RS485 · Wi-Fi · Bluetooth
- Certifications
- IEC 62619 · IEC 62477 · CE · UN38.3
- Warranty
- 10 years
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
