In stock

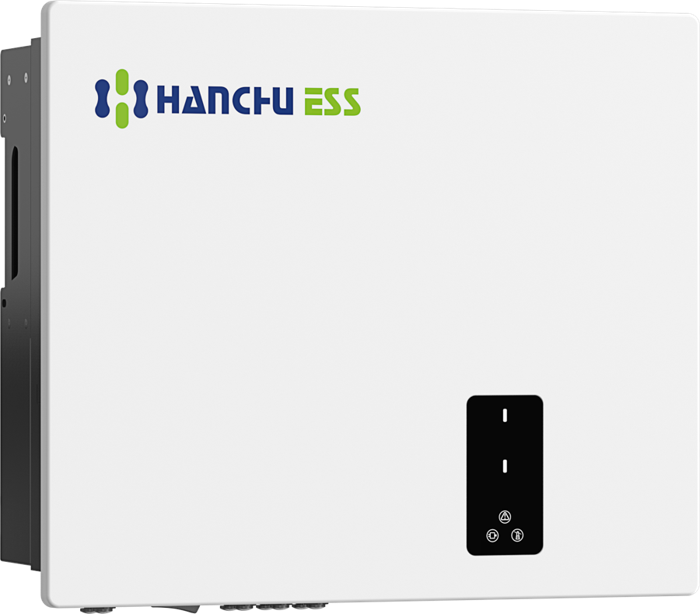

Supplied & installed by iConusHESS-HY-T-5K – 12K
Hybrid inverter · 5–12 kW · Three phase · HV battery
Price on request
Choose a model · HESS-HY-T-05K
Quantity
HESS-HY-T-5K – 12K · Price on request
Hybrid inverter · Hanchu ESS
5–12kW
A three-phase hybrid inverter for bigger homes and small businesses, paired with Hanchu high-voltage battery stacks.
150% · PV over-sizing<10 ms · UPS switch time100% · Unbalanced outputIP66 · Outdoor rated
150%PV over-sizing
<10 msUPS switch time
100%Unbalanced output
IP66Outdoor rated
Features
Why this hybrid inverter.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.

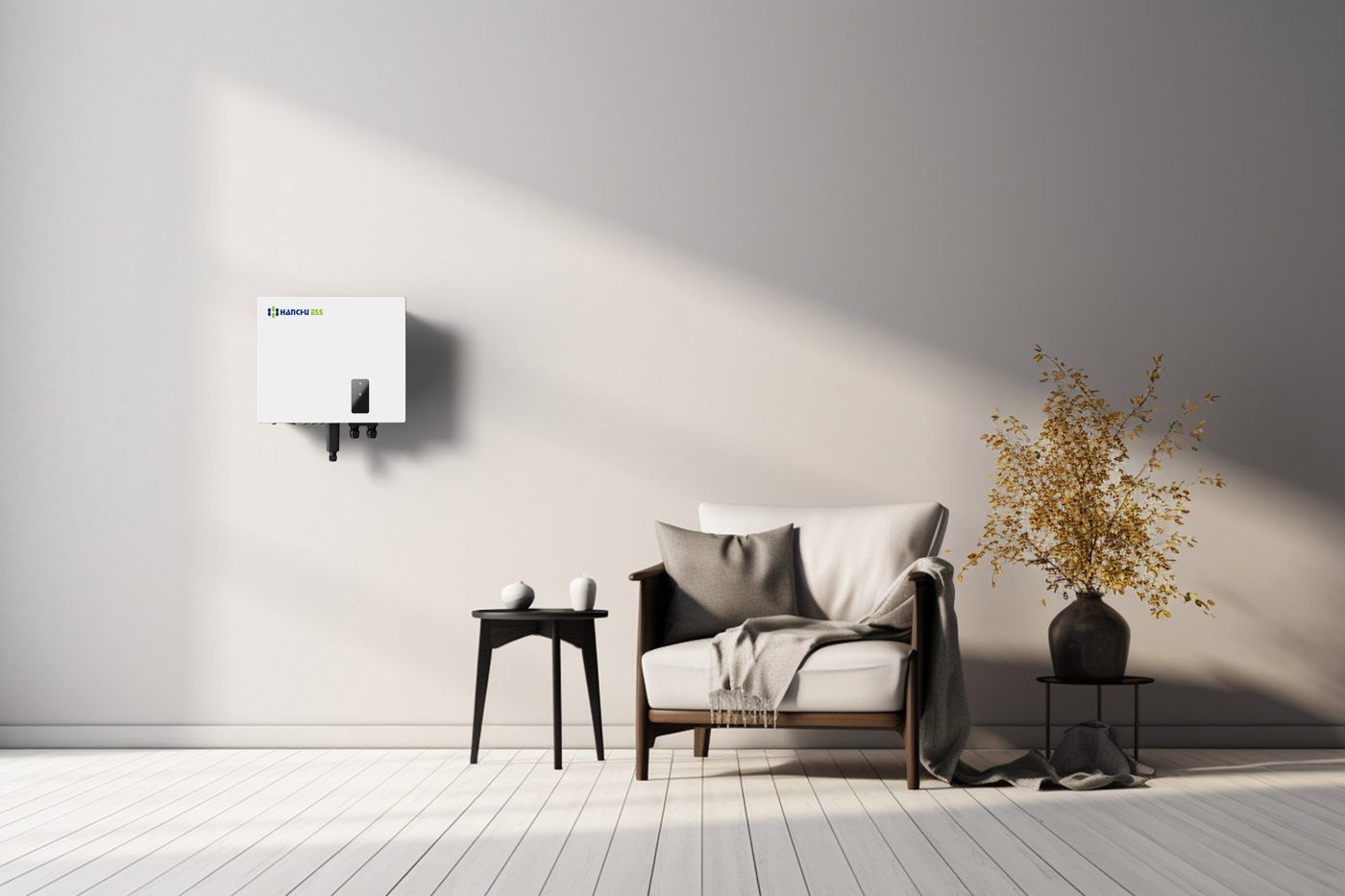

Hanchu ESSHESS-HY-T-5K – 12KInstalled in a modern home
Tool-free DC connectionPhoenix Contact connectors for reliable wiring.
100% unbalanced outputEach phase can carry a different load.
Big panels welcome20 A per tracker suits high-power and bifacial modules.
Smart work modesTime-of-use, depth-of-discharge and power settings in the app.
UPS-level switchingUnder 10 ms to backup.
Outdoor ratedIP66, natural convection cooling.

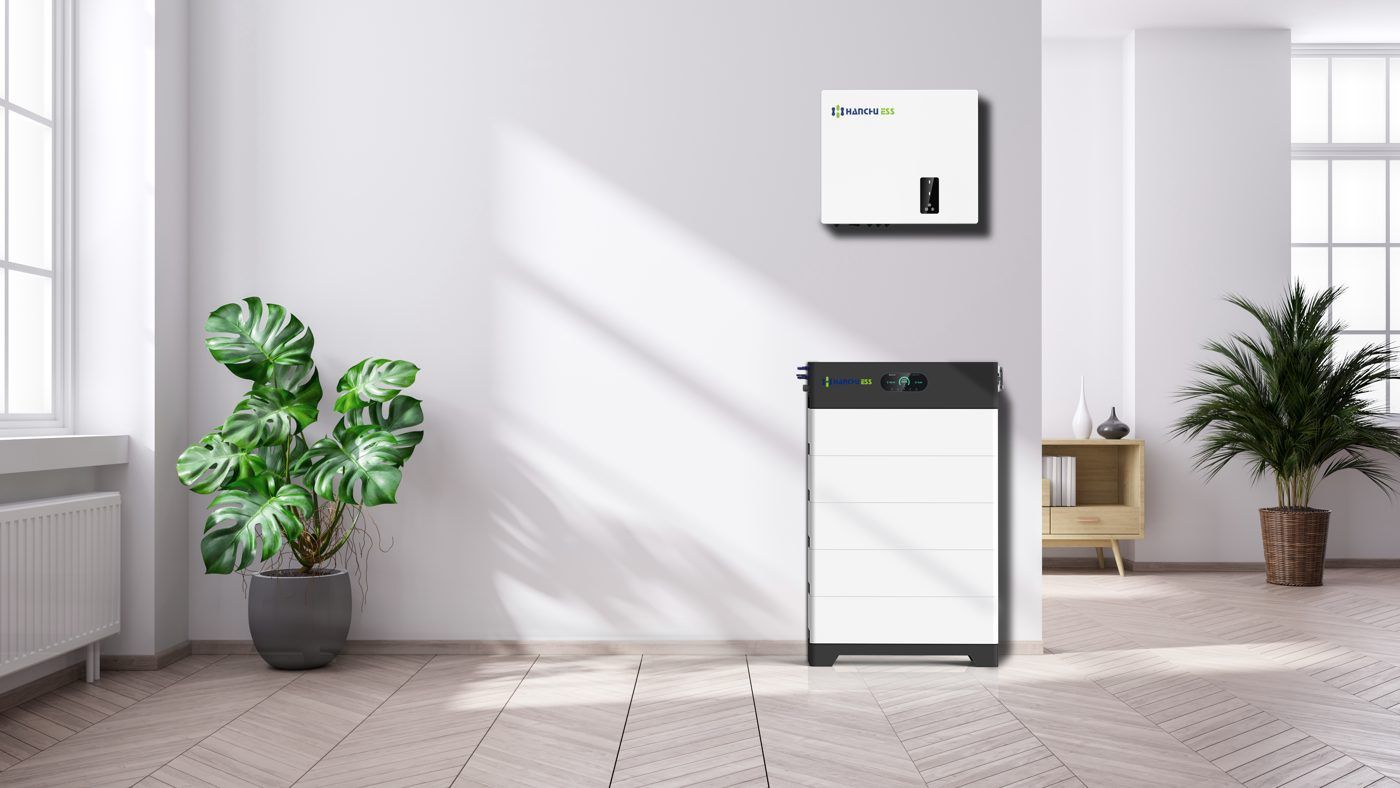

How it connects
One box runs
the whole system.
Solar feeds your home first. Extra energy charges the battery, and when the grid drops the inverter switches to backup on its own.
Figures from the datasheet. Your engineer confirms sizing at the site survey.
Specifications
The details.
- Models
- 05K · 06K · 08K · 10K · 12K
- Max PV array power
- 7,500–18,000 Wp
- Max PV input voltage
- 1,100 V
- MPPT range
- 150/200–950 V
- MPP trackers
- 2 (20 A each)
- Battery voltage range
- 120–600 V
- Max charge / discharge power
- 5–12 kW
- Charge / discharge current
- 30 A
- Compatible battery
- Hanchu HOME-ESS-HV
- Rated AC output
- 5,000–12,000 VA
- Backup peak
- 2 × rated power, 10 s
- Switch time
- < 10 ms
- Max efficiency
- 98.0–98.4%
- Dimensions (W×H×D)
- 545 × 465 × 205 mm
- Weight
- 24.5 kg
- Protection
- IP66
- Max altitude
- 4,000 m
- Warranty
- 10 years
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
Complete the system
Pairs well with
Mix partners in one quote. iConus coordinates delivery and installation.
