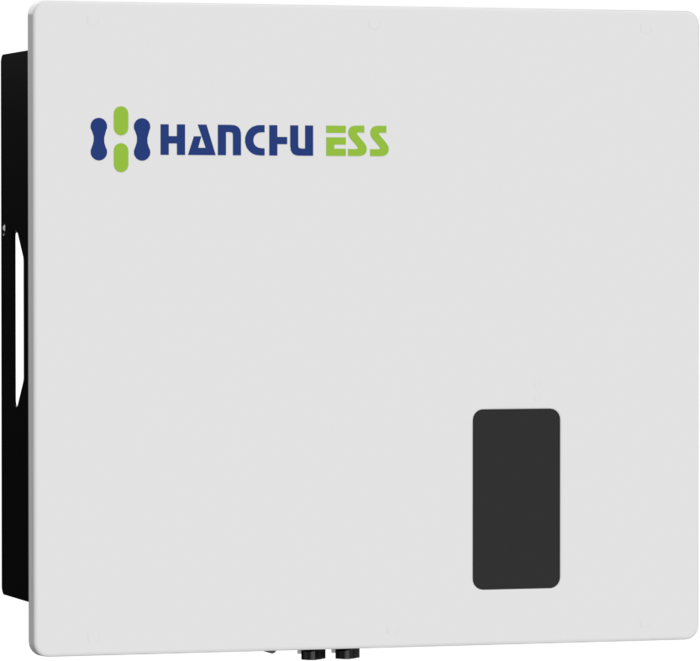

Supplied & installed by iConusHESS-HY-S-3.68K – 6.0K
Hybrid inverter · 3.68–6 kW · Single phase · LV battery
Price on request
Choose a model · HESS-HY-S-3.68K
Quantity
HESS-HY-S-3.68K – 6.0K · Price on request
Hybrid inverter · Hanchu ESS
3.68–6kW
A single-phase hybrid inverter that runs your home on solar, stores the extra in a Hanchu low-voltage battery and switches to backup in under 10 ms.
2 MPPT · 16 A per tracker100 A · Battery charge / discharge≤10 ms · Switch to backupIP66 · Outdoor rated
2 MPPT16 A per tracker
100 ABattery charge / discharge
≤10 msSwitch to backup
IP66Outdoor rated
Features
Why this hybrid inverter.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.

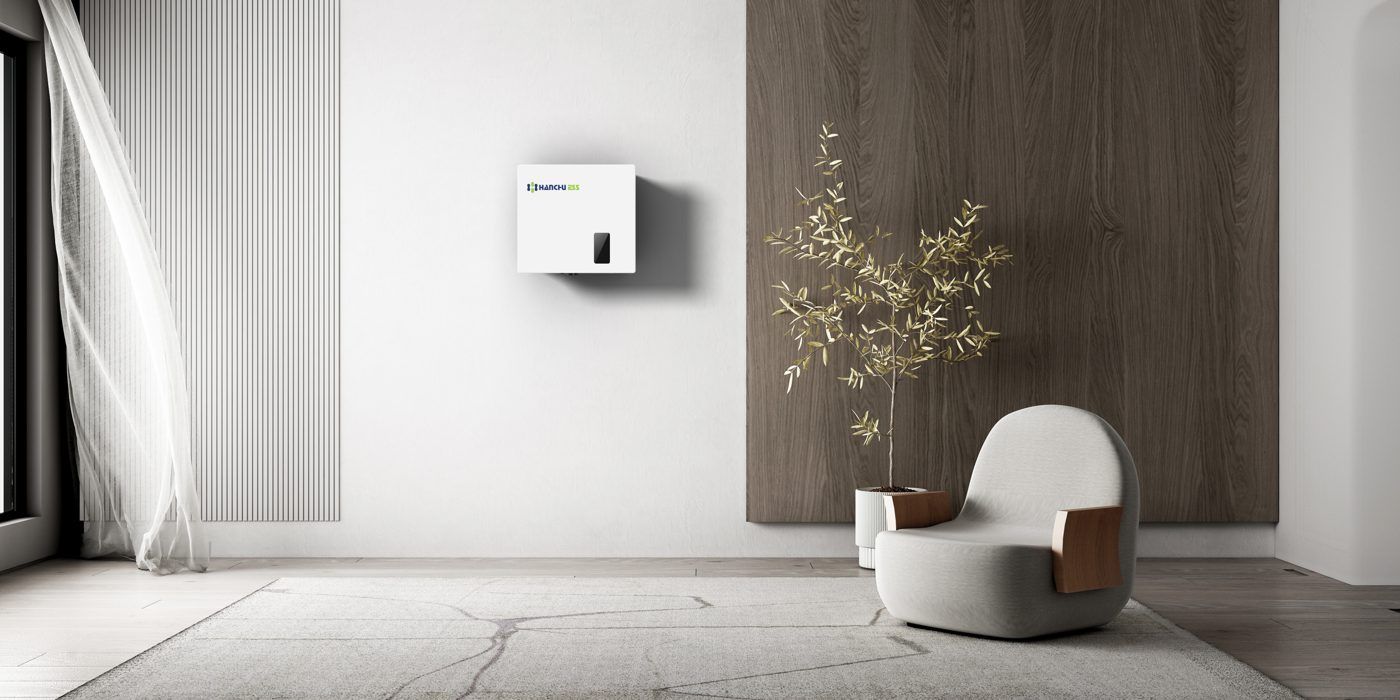

Hanchu ESSHESS-HY-S-3.68K – 6.0KInstalled on a wall at home
Quick to installCompact wall-mount design that fits with basic tools.
UPS backupPower during blackouts, switching over in 10 ms or less.
Shadow managementBetter generation when parts of the roof are shaded.
Monitor from your phoneWi-Fi monitoring through the Hanchu iESS app.
Outdoor ratedIP66 enclosure for indoor or outdoor mounting.

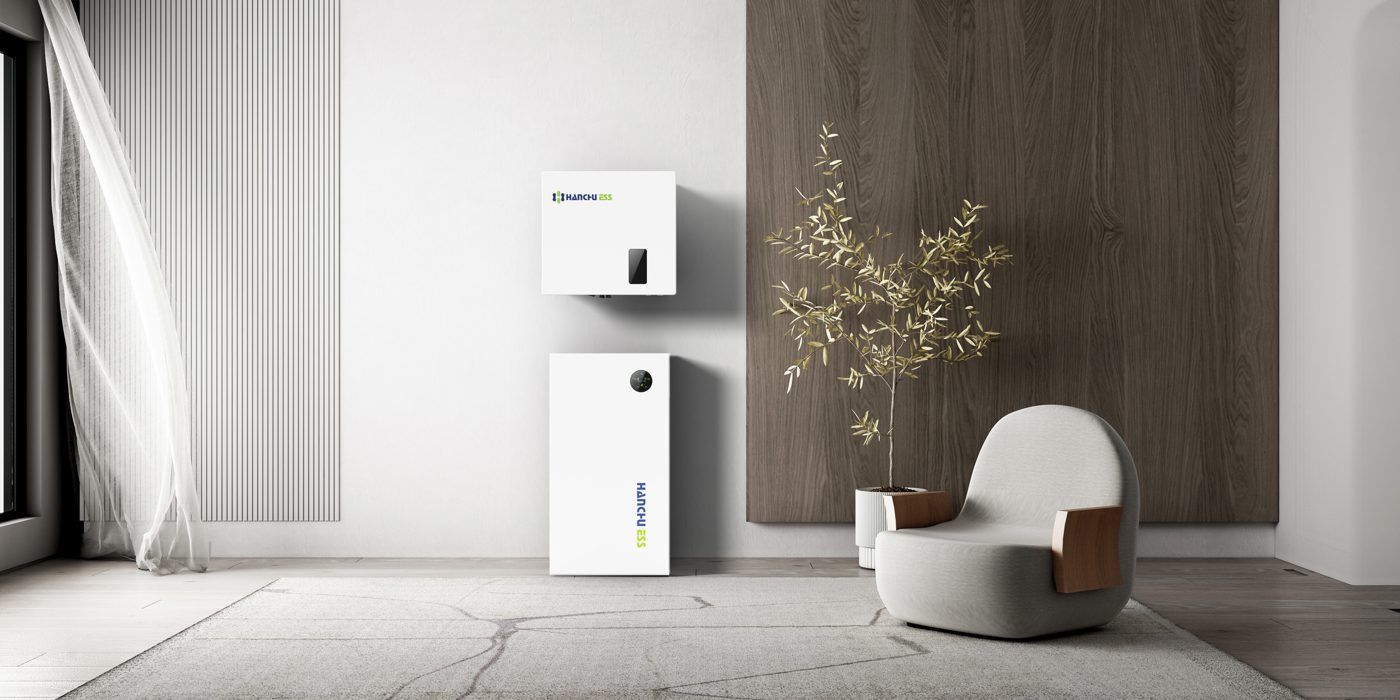

Made for LV batteriesPairs with HOME-ESS-LV-5.12K and 9.4K modules.
How it connects
One box runs
the whole system.
Solar feeds your home first. Extra energy charges the battery, and when the grid drops the inverter switches to backup on its own.
Figures from the datasheet. Your engineer confirms sizing at the site survey.
Specifications
The details.
- Models
- 3.68K · 4.0K · 5.0K · 6.0K
- Max PV array power
- 6,180–9,000 Wp
- Max PV input voltage
- 550 V
- MPPT range / rated
- 40–530 V / 380 V
- MPP trackers
- 2 (16 A each)
- Battery voltage
- 48 / 51.2 V (40–60 V)
- Max charge / discharge
- 5,000 W · 100 A
- Compatible battery
- Hanchu HOME-ESS-LV
- Rated AC output
- 3,680–6,000 VA
- Backup (EPS) output
- 5,000 VA · peak 7,500 VA, 10 s
- Switch time
- ≤ 10 ms
- Max efficiency
- 97.6% (Euro 97%)
- Dimensions (W×H×D)
- 483 × 455 × 193.5 mm
- Weight
- 25.1 kg
- Operating temperature
- −25 to +60 °C
- Noise
- 30 dB(A)
- Protection
- IP66
- Warranty
- 10 years
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
