Supplied & installed by iConusHOME-ESS-LV-9.4K
Home battery · 9.4–150.4 kWh · Low voltage
Price on requestper module
Battery modules
Total storage: 18.80 kWh
HOME-ESS-LV-9.4K · Price on request
Home battery · Hanchu ESS
9.4–150.4kWh
A larger low-voltage battery module with blade LFP cells. Start with one and parallel up to sixteen.
Blade LFP · Cell technology100 A · Charge / discharge95% · Depth of dischargeIP65 · Dust & water protected
Blade LFPCell technology
100 ACharge / discharge
95%Depth of discharge
IP65Dust & water protected
Features
Why this home battery.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.

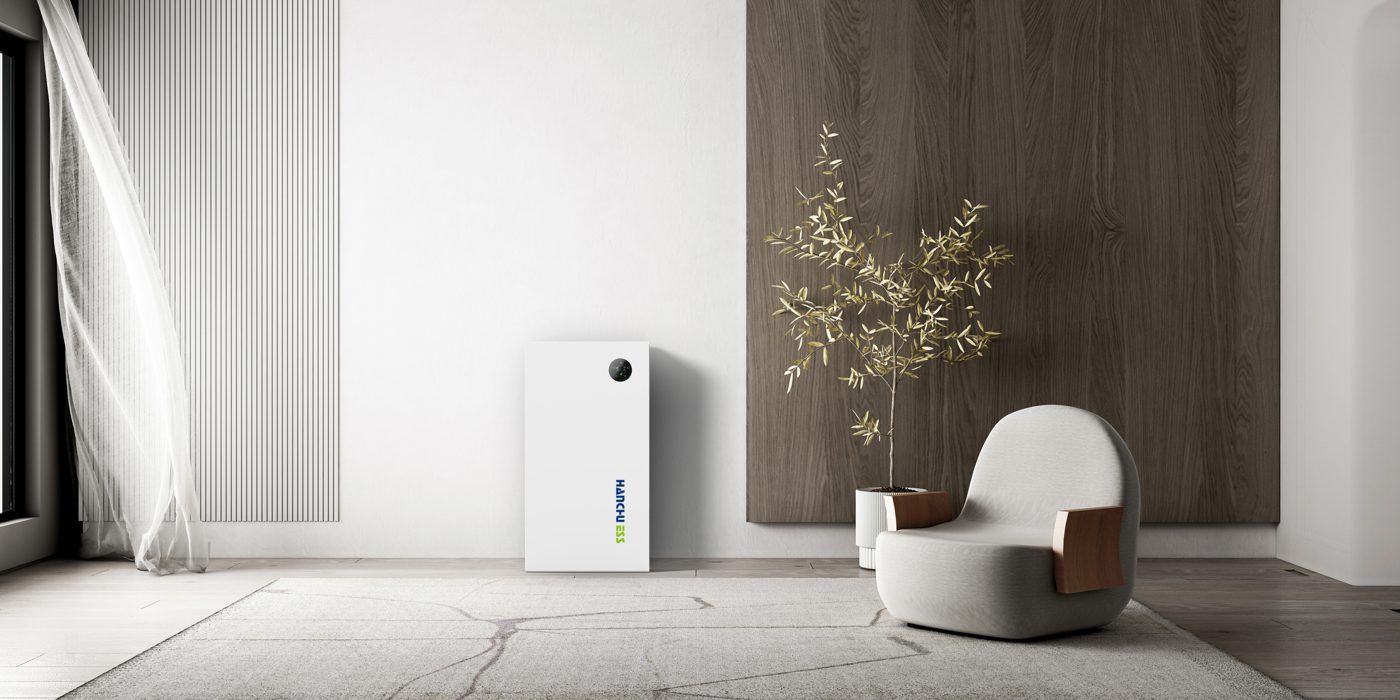

Hanchu ESSHOME-ESS-LV-9.4KInstalled at home
Blade LFP cellsCTP construction for more energy in less space.
Aerosol fire protectionBuilt-in fire suppression for extra safety.
Multi-level heat dissipationKeeps the battery cool for long-term stability.
Smart BMS & EMSOnline configuration, monitoring and upgrades.
Build your stack
How much backup
do you need?
What do you want to keep running?
Total storage
18.80 kWh
18.80 kWh
Usable at 95% depth
– kWh
– kWh
Estimated backup
≈ – hours
≈ – hours
At a steady 1.5 kW load. Real results vary.
Specifications
The details.
- Nominal energy
- 9.4 kWh
- Nominal voltage
- 51.2 V (43.2–57.6 V)
- Cell type
- Blade LFP
- Charge / discharge current
- 100 A
- Depth of discharge
- 95%
- Max parallel
- 16 modules
- Dimensions (W×D×H)
- 430 × 150 × 800 mm
- Weight
- 72 kg
- Charging temperature
- 0 to 50 °C
- Discharging temperature
- −10 to 60 °C
- Protection
- IP65
- Communication
- CAN · RS485 · Wi-Fi · Bluetooth
- Certifications
- IEC 62619 · IEC 63056 · CE · UN38.3
- Warranty
- 10 years
