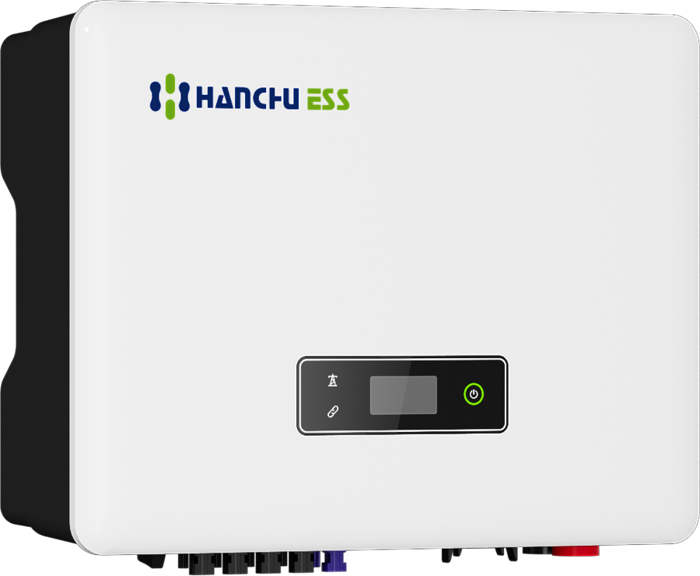

Supplied & installed by iConusHESS-HY-T-15K / 20K-M4
Hybrid inverter · 15–20 kW · Three phase · 2 MPPTs
Price on request
Choose a model · HESS-HY-T-15K-M4
Quantity
HESS-HY-T-15K / 20K-M4 · Price on request
Hybrid inverter · Hanchu ESS
15–20kW
A larger three-phase hybrid inverter for guest houses, shops and small businesses, with a wide 135–750 V battery range.
98.4% · Max efficiency2 × 30 A · PV input current<10 ms · UPS switch timeIP65 · Indoor & outdoor
98.4%Max efficiency
2 × 30 APV input current
<10 msUPS switch time
IP65Indoor & outdoor
Features
Why this hybrid inverter.
Home batteries · Hybrid inverters · C&I storage · EV chargers, supplied and supported by iConus.
110% unbalanced outputHelps you use more of your own solar.
Wide battery range135–750 V fits a range of high-voltage batteries.
Five work modesSix charge and discharge windows for fine control.
Remote upgradesKeeps the system current without a site visit.
UPS-level switching10 ms switch keeps critical loads running.
IP65Protected indoors and outdoors.
How it connects
One box runs
the whole system.
Solar feeds your home first. Extra energy charges the battery, and when the grid drops the inverter switches to backup on its own.
Figures from the datasheet. Your engineer confirms sizing at the site survey.
Specifications
The details.
- Models
- 15K-M4 · 20K-M4
- Max PV input power
- 22.5 / 30 kW
- Max DC input voltage
- 1,000 V
- MPPT range
- 200–950 V
- MPP trackers
- 2 (2 inputs each)
- Battery voltage range
- 135–750 V
- Charge / discharge current
- 40 A
- Rated output
- 15 / 20 kW
- Backup peak
- 17.25 / 23 kVA, 10 s
- UPS switch time
- < 10 ms
- Max efficiency
- 98.4% (Euro 97.5%)
- Dimensions (W×H×D)
- 534 × 418 × 210 mm
- Weight
- 31 kg
- Protection
- IP65
- Operating temperature
- −30 to +60 °C
- Warranty
- Ask us
Downloads
DatasheetPDF · from Hanchu ESSInstallation guidePDFQuestions about fitting it?Our engineers check compatibility before you buy.Chat on WhatsApp
